PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance

Brand Name : XWH

Model Number : FN

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD6000-USD10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 sets/month

Delivery Time : 15 working days

Packaging Details : Wooden Case

Contact Now

Plc Seam Welding Tracking Tin Can Cleaning Mig Circular Automatic Roll Wheel Portable Macine Resistance

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

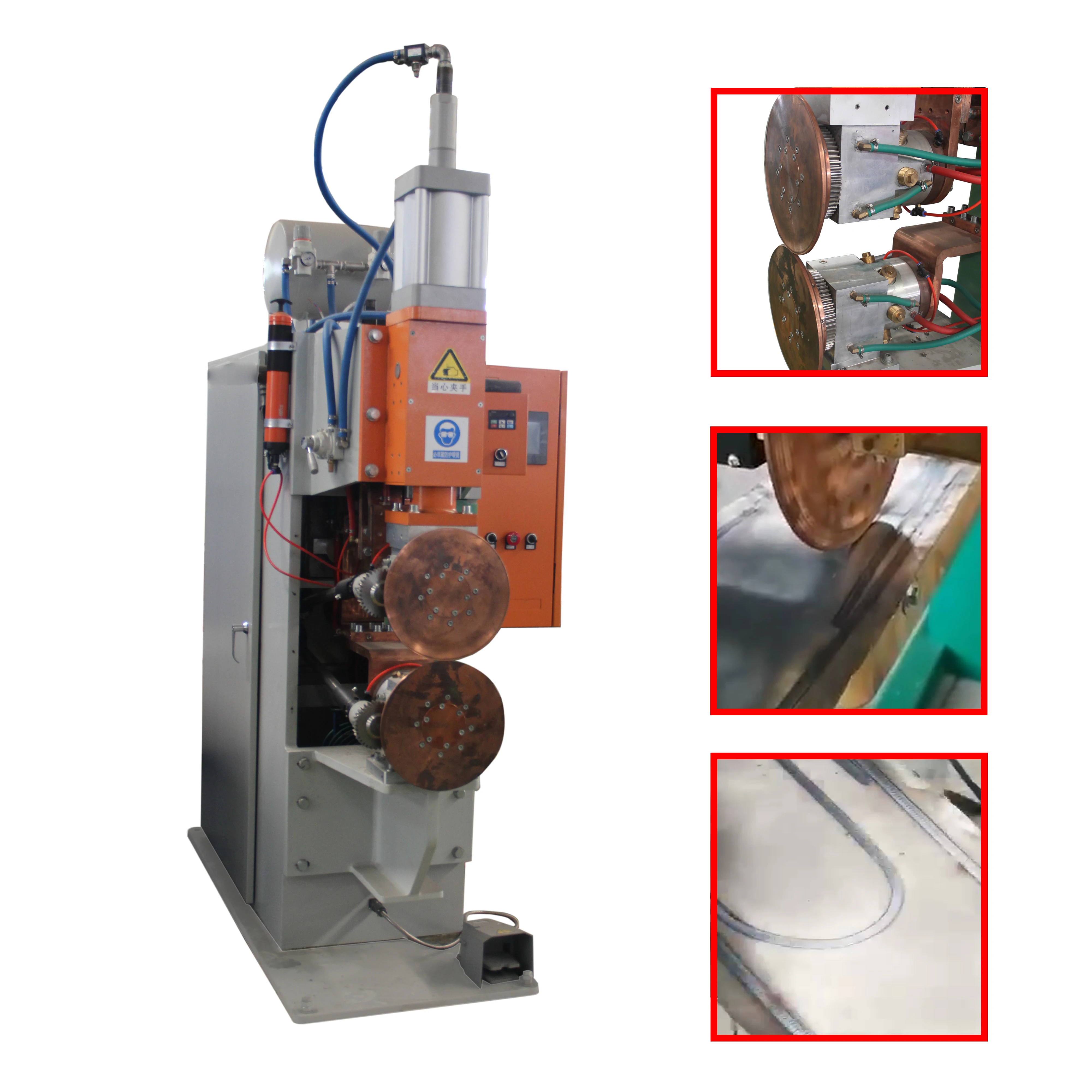

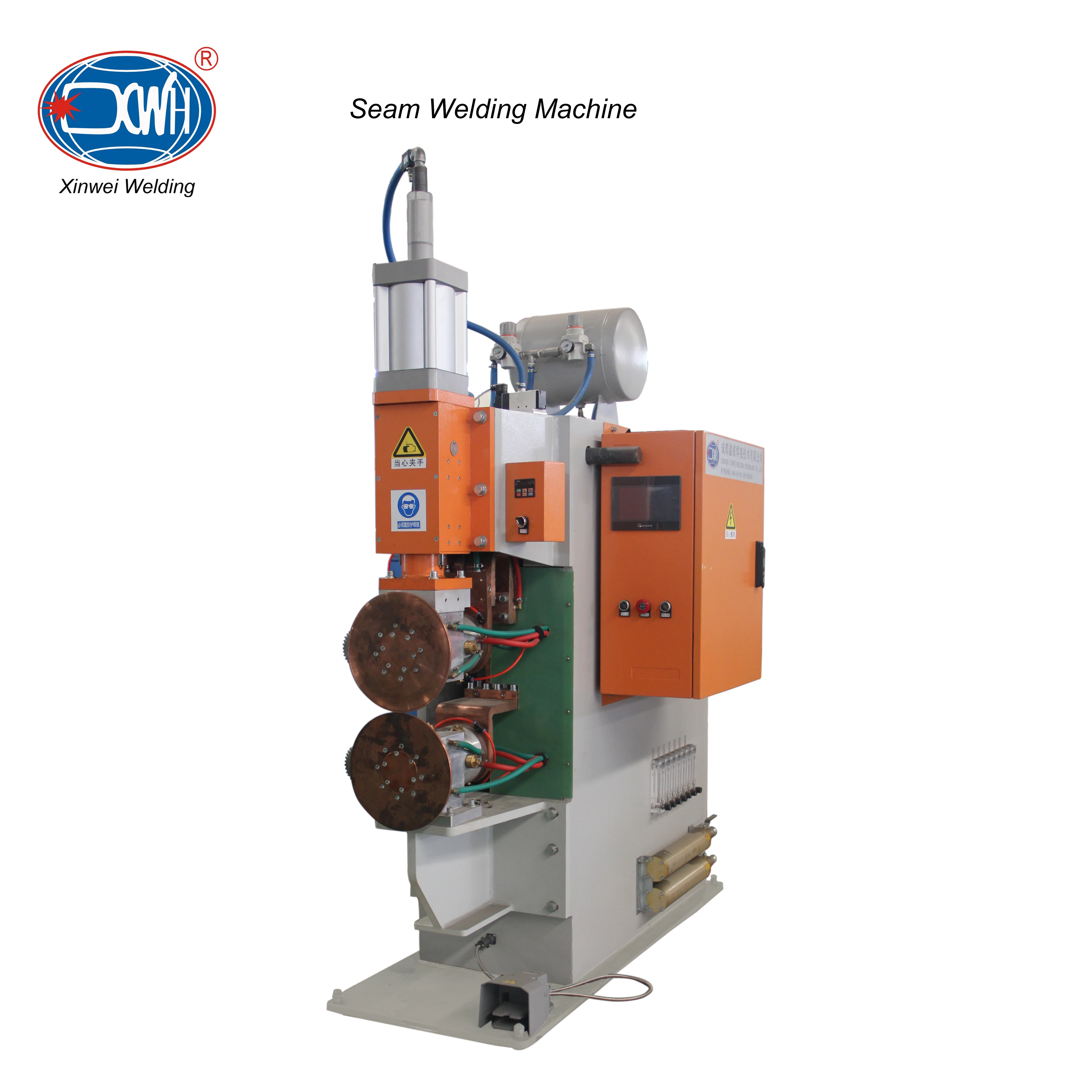

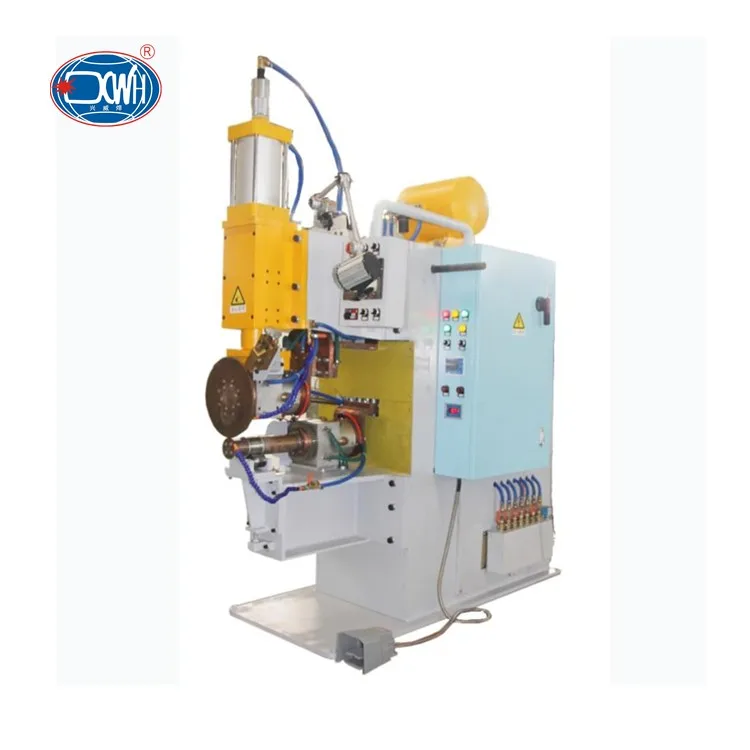

Product Display

PLC Seam Welding Equipment 550W Portable Seam Welder Macine Resistance

Seam Welding Machine can be widely used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding. Besides,it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be customized according to your requirements.

Wooden case is non-fumigation, more convenient for transport

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.

Certifications

Exhibition Pictures

Service

Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining  machines and so on.

Transportation Display
